Scale model 1

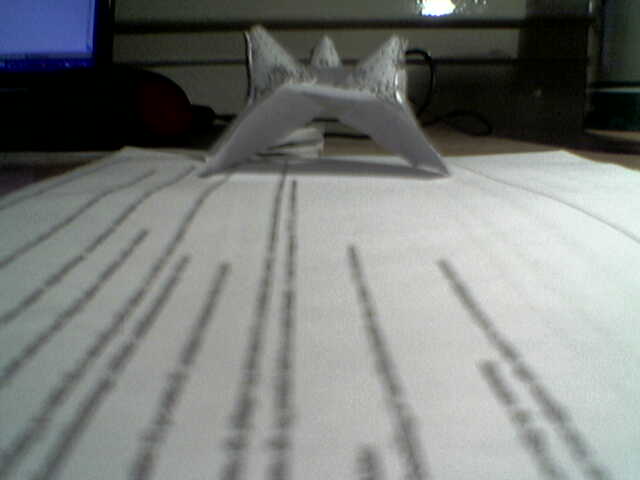

These images show the first scale model of OrangeCamp that was build.

We thought the images was lost and has earlier posted our second scale model as "Scale model 1". This has now been corrected.

This scale model was carefully folded from one piece of A4 paper by our engineer and designer Ebbe during the work on the drawings

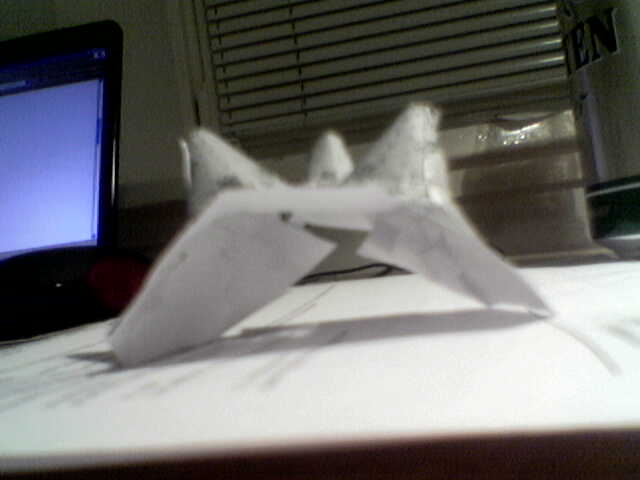

As you can see on the image the final design of the rear arcs was not completed at this time.

To see how small this model is it should be mentioned that is is places on a piece of A4 paper
